| 材料: | 陶磁器 | 証明: | UL |
|---|---|---|---|
| 保護タイプ: | AR | 容量の破損: | DC20KA |
| ハイライト: | 陶磁器の高い破裂容量のヒューズ,UL高い破裂容量のヒューズ |
||

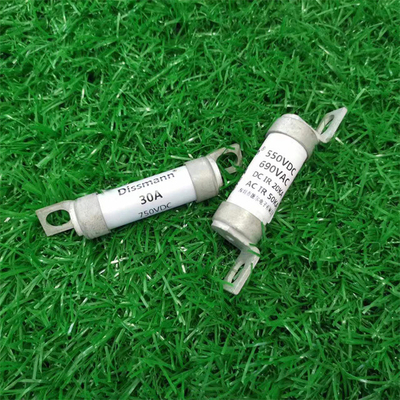

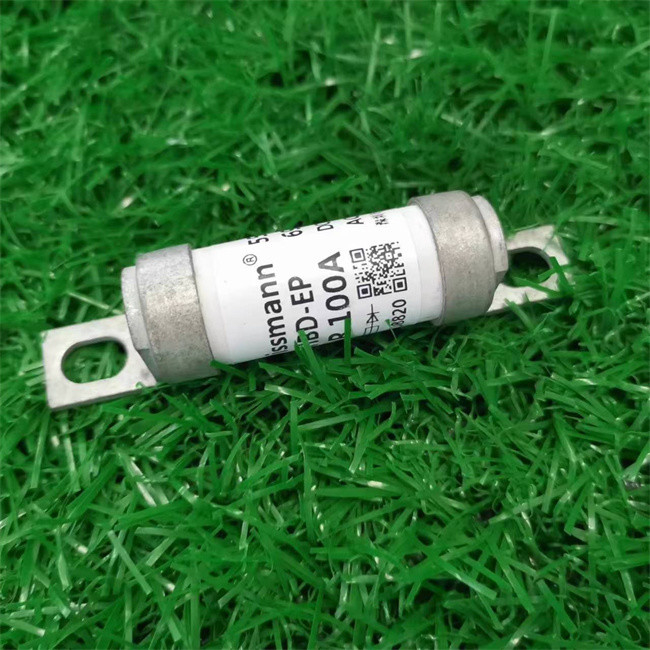

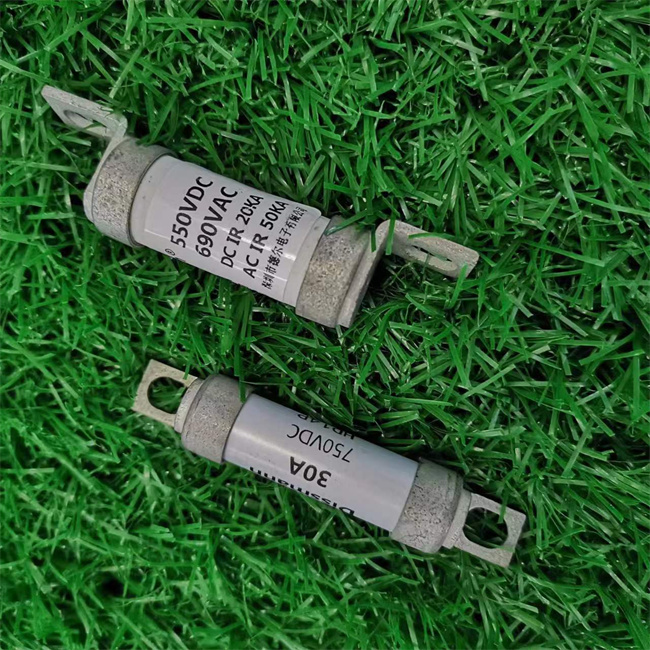

この一連のプロダクトは小さい容積および高い破損容量の円形の管のタイプ速いヒューズ、である。それは広い温度較差に適当で、高力機械振動におよび影響、広い温度の影響および強い化学負荷抗でき道路車両の企業の適用のために適して、そして電気自動車の運転のパワー系統の短絡として、積み過ぎおよびバックアップ保護、力の転換システム、エネルギー蓄積および力電池、エネルギー蓄積のコンデンサー、周波数変換のコントローラー、充電器、ワイヤーおよび他の車装置および装置使用することができる。
1.DC750V BS88-HBDシリーズ ヒューズ（評価される流れ:6A-700Aの保護タイプ:容量を壊しているaR:DC20KA）
製品タイプ:
|
数 |
モデル |
製品コード |
評価される流れ
|
Iの² t （Aの²の秒） |
パワー消費量 W |
|
| 前アーク | 溶解 | |||||
| 1 | CPL/CTL | HBD-6CPL/HBD-6CTL | 6 | 2.0 | 13.0 | 1.9 |
| HBD-10CPL/HBD-10CTL | 10 | 7.1 | 47.2 | 2.9 | ||
| HBD-12CPL/HBD-12CTL | 12 | 10.2 | 65.9 | 2.9 | ||
| HBD-16CPL/HBD-16CTL | 16 | 16.3 | 107.8 | 6.8 | ||
| HBD-20CPL/HBD-20CTL | 20 | 32.4 | 215.6 | 6.8 | ||
| 2 | EPL/ETL | HBD-16EPL/HBD-16ETL | 16 | 25.6 | 130.5 | 3.0 |
| HBD-20EPL/HBD-20ETL | 20 | 40.0 | 225.0 | 3.5 | ||
| HBD-25EPL/HBD-25ETL | 25 | 25.3 | 255.0 | 6.8 | ||
| HBD-32EPL/HBD-32ETL | 32 | 31.7 | 346.5 | 11.0 | ||
| HBD-35EPL/HBD-35ETL | 35 | 51.5 | 495.0 | 11.0 | ||
| HBD-40EPL/HBD-40ETL | 40 | 104.0 | 903.0 | 8.9 | ||
| HBD-45EPL/HBD-45ETL | 45 | 106.5 | 1110.0 | 10.0 | ||
| HBD-50EPL/HBD-50ETL | 50 | 118.5 | 1290.0 | 11.0 | ||
| HBD-56EPL/HBD-56ETL | 56 | 137 | 1530 | 13.7 | ||
| HBD-63EPL/HBD-63ETL | 63 | 168 | 1978年 | 15.6 | ||
| HBD-80EPL/HBD-80ETL | 80 | 353 | 3890 | 18.0 | ||
| HBD-100EPL/HBD-100ETL | 100 | 1200 | 4350 | 17.0 | ||
| 3 | HPL/HTL | HBD-32HPL/HBD-32HTL | 32 | 108 | 13000 | 10.5 |
| HBD-40HPL/HBD-40HTL | 40 | 165 | 2100 | 13.0 | ||
| HBD-50HPL/HBD-50HTL | 50 | 260 | 3350 | 16.0 | ||
| HBD-63HPL/HBD-63HTL | 63 | 480 | 6000 | 19.0 | ||
| HBD-80HPL/HBD-80HTL | 80 | 900 | 11200 | 22.8 | ||
| HBD-100HPL/HBD-100HTL | 100 | 1460 | 18500 | 28.0 | ||
| HBD-125HPL/HBD-125HTL | 125 | 2400 | 30200 | 34.5 | ||
| HBD-160HPL/HBD-160HTL | 160 | 4300 | 54000 | 37.5 | ||
| HBD-200HPL/HBD-200HTL | 200 | 8100 | 101000 | 40.0 | ||
| 4 | EEPL/EETL | HBD-90EEPL/HBD-90EETL | 90 | 492 | 4510 | 19.0 |
| HBD-110EEPL/HBD-110EETL | 110 | 605 | 6565 | 26.5 | ||
| HBD-140EEPL/HBD-140EETL | 140 | 1060 | 11880 | 34.0 | ||
| HBD-160EEPL/HBD-160EETL | 160 | 1470 | 16490 | 38.2 | ||
| 5 | SML/STL | HBD-180SML/HBD-180STL | 180 | 1358 | 13230 | 39.0 |
| HBD-200SML/HBD-200STL | 200 | 2548 | 17760 | 40.0 | ||
| HBD-225SML/HBD-225STL | 225 | 3552 | 25200 | 42.8 | ||
| HBD-250SML/HBD-250STL | 250 | 4990 | 3560 | 47.5 | ||
| HBD-280SML/HBD-280STL | 280 | 6860 | 51000 | 48.2 | ||
| HBD-315SML/HBD-315STL | 315 | 9760 | 71600 | 54.5 | ||
| HBD-350SML/HBD-350STL | 350 | 14100 | 96600 | 55.6 | ||
| HBD-400SML/HBD-400STL | 400 | 18500 | 125000 | 58.0 | ||
|
6
|
SMML/STTL
|
HBD-400SMML/HBD-400STTL | 400 | 9680 | 69600 | 83.9 |
| HBD-450SMML/HBD-450STTL | 450 | 14000 | 94800 | 90.0 | ||
| HBD-500SMML/HBD-500STTL | 500 | 19200 | 136500 | 99.8 | ||
| HBD-550SMML/HBD-550STTL | 550 | 27600 | 195650 | 100.3 | ||
| HBD-630SMML/HBD-630STTL | 630 | 40800 | 272800 | 101.9 | ||
| HBD-700SMML/HBD-700STTL | 700 | 54000 | 373800 | 119.2 | ||
|
数 |
モデル |
製品コード |
評価される流れ |
Iの² t （Aの²の秒） |
パワー消費量 W |
|
| 前アーク | 溶解 | |||||
| 1 | CPJ/CTJ | HBD-6CPJ/HBD-6CTJ | 6 | 2.2 | 13.5 | 2.0 |
| HBD-10CPJ/HBD-10CTJ | 10 | 7.4 | 48.0 | 3.0 | ||
| HBD-12CPJ/HBD-12CTJ | 12 | 10.5 | 67 | 3.2 | ||
| HBD-16CPJ/HBD-16CTJ | 16 | 17.0 | 110 | 7.0 | ||
| 2 | EPJ/ETJ | HBD-16EPJ/HBD-16ETJ | 16 | 26.0 | 132 | 3.2 |
| HBD-20EPJ/HBD-20ETJ | 20 | 41.0 | 228.0 | 3.5 | ||
| HBD-25EPJ/HBD-25ETJ | 25 | 26.5 | 257.0 | 7.0 | ||
| HBD-32EPJ/HBD-32ETJ | 32 | 33.0 | 350.0 | 11.0 | ||
| HBD-35EPJ/HBD-35ETJ | 35 | 52.8 | 500.0 | 11.2 | ||
| HBD-40EPJ/HBD-40ETJ | 40 | 108.0 | 910.0 | 9.0 | ||
| HBD-45EPJ/HBD-45ETJ | 45 | 110.0 | 1100.0 | 9.6 | ||
| HBD-50EPJ/HBD-50ETJ | 50 | 123.0 | 1250.0 | 10.8 | ||
| HBD-56EPJ/HBD-56ETJ | 56 | 140.0 | 1550.0 | 13.5 | ||
| HBD-63EPJ/HBD-63ETJ | 63 | 170.0 | 1990.0 | 15.5 | ||
| HBD-80EPJ/HBD-80ETJ | 80 | 360.0 | 4000.0 | 18.0 | ||
| 3 | HPJ/HTJ | HBD-32HPJ/HBD-32HTJ | 32 | 110 | 1300 | 10.8 |
| HBD-40HPJ/HBD-40HTJ | 40 | 170 | 2200 | 13.0 | ||
| HBD-50HPJ/HBD-50HTJ | 50 | 270 | 3400 | 16.0 | ||
| HBD-63HPJ/HBD-63HTJ | 63 | 490 | 6100 | 19.3 | ||
| HBD-80HPJ/HBD-80HTJ | 80 | 920 | 11400 | 23.0 | ||
| HBD-100HPJ/HBD-100HTJ | 100 | 1500 | 18800 | 28.5 | ||
| HBD-125HPJ/HBD-125HTJ | 125 | 2500 | 30800 | 34.0 | ||
| HBD-160HPJ/HBD-160HTJ | 160 | 4400 | 54800 | 37.3 | ||
| 4 | EEPJ/EETJ | HBD-90EEPJ/HBD-90EETJ | 90 | 500 | 4510 | 19.0 |
| HBD-110EEPJ/HBD-110EETJ | 110 | 610 | 6700 | 26.5 | ||
| HBD-140EEPJ/HBD-140EETJ | 140 | 1100 | 12000 | 34.0 | ||
| HBD-160EEPJ/HBD-160EETJ | 160 | 1600。 | 17000 | 38.0 | ||
| 5 | SMJ/STJ | HBD-180SMJ/HBD-180STJ | 180 | 1390 | 13400 | 39.2 |
| HBD-200SMJ/HBD-200STJ | 200 | 2600 | 17900 | 40.0 | ||
| HBD-225SMJ/HBD-225STJ | 225 | 3600 | 25400 | 42.5 | ||
| HBD-250SMJ/HBD-250STJ | 250 | 5050 | 36000 | 47.0 | ||
| HBD-280SMJ/HBD-280STJ | 280 | 6950 | 52000 | 48.0 | ||
| HBD-315SMJ/HBD-315STJ | 315 | 9900 | 72800 | 54.0 | ||
| HBD-350SMJ/HBD-350STJ | 350 | 14400 | 98000 | 55.5 | ||
| HBD-400SMJ/HBD-400STJ | 400 | 19000 | 128000 | 58.0 | ||
| 6 | SMMJ/STTJ | HBD-400SMMJ/HBD-400STTJ | 400 | 9800 | 69700 | 84.0 |
| HBD-450SMMJ/HBD-450STTJ | 450 | 14300 | 96000 | 90.0 | ||
| HBD-500SMMJ/HBD-500STTJ | 500 | 19500 | 138000 | 97.5 | ||
| HBD-550SMMJ/HBD-550STTJ | 550 | 27900 | 197000 | 100.0 | ||
| HBD-630SMMJ/HBD-630STTJ | 630 | 41200 | 275000 | 102.0 | ||
| HBD-700SMMJ/HBD-700STTJ | 700 | 55500 | 375000 | 119.5 | ||
